Status Icons¶

Icons that appear in the system tray for representing app status while the app isn't visible.

Usage¶

Although the usual user interface for an app is a window, some apps will augment - or even replace - a window-base interface with an icon in the system tray or status bar provided by the operating system. This is especially common for apps that primarily run in the background.

Toga supports two types of status icons - simple status icons, and menu status icons.

Simple status icons¶

A simple status icon is a bare icon in the status bar. You can set and change the icon as required to reflect changes in application state; by default, the status icon will use the app's icon. The text associated with the icon will be used as a tooltip; again, the app's formal name will be used as default text. The icon can respond to mouse clicks by defining an on_press handler.

To define a simple status icon, declare an instance of toga.SimpleStatusIcon, and add it to your app's status_icons set:

import toga

# Define a status icon that uses default values for icon and tooltip,
# and doesn't respond to mouse clicks.
status_icon_1 = toga.SimpleStatusIcon()

# Define a second status icon that provides explicit values for the id, icon and
# tooltip, and responds to mouse clicks.
def my_handler(widget, **kwargs):
    print("Second status icon pressed!")

status_icon_2 = toga.SimpleStatusIcon(
    id="second",
    text="Hello!",
    icon="icons/red",
    on_press=my_handler
)

# Add both status icons to the app
app.status_icons.add(status_icon_1, status_icon_2)

Once a status icon has been added to the app, it can be retrieved by ID or by index; and it can be removed from the app:

# Change the icon of the first status icon, retrieved by index:
app.status_icons[0].icon = "icons/green"

# Change the icon of the second status icon, retrieved by id:
app.status_icons["second"].icon = "icons/blue"

# Remove the first status icon from the app:
app.status_icons.remove(status_icon_1)

A menu-based status icon is defined by adding a toga.MenuStatusIcon instance. A toga.MenuStatusIcon behaves almost the same as SimpleStatusIcon, except that it cannot have an on_click handler - but it can be used to register Commands that will be displayed in a menu when the icon is clicked.

The MenuStatusIcon is a Group for command sorting purposes. To put a command in a menu associated with a MenuStatusIcon, set the group associated with that command, then add the command to the CommandSet associated with status icons. The following example will create a MenuStatusIcon that has a single top-level menu item, plus a sub-menu that itself has a single menu item:

# Create a MenuStatusIcon
status_icon = toga.MenuStatusIcon(icon="icons/blue")

# Create some commands that are associated with the menu status icon's group.
def callback(sender, **kwargs):
    print("Command activated")

cmd1 = toga.Command(
    callback,
    text='Example command',
    group=status_icon,
)

# Create a sub-group of the status icon. This will appear as a submenu.
stuff_group = toga.Group('Stuff', parent=status_icon)

cmd2 = toga.Command(
    callback,
    text='Stuff sub-command',
    group=stuff_group
)

# Add the status icon to the app
app.status_icons.add(status_icon)

# Add the commands to the status icons command set
app.status_icons.commands.add(cmd1, cmd2)

If you add at least one MenuStatusIcon instance to your app, Toga will add some standard commands to the app's status icon command set. These items will appear at the end of the first MenuStatusIcon's menu. To remove these items, clear the app's status icon command set before adding your own commands.

If you add a command to the app's status icon command set that doesn't belong to a MenuStatusIcon group, or that belongs to a MenuStatusIcon group that hasn't been registered with the app as a status icon, a ValueError will be raised. An error will also be raised if you remove a status icon while there status icon commands referencing that command.

Notes¶

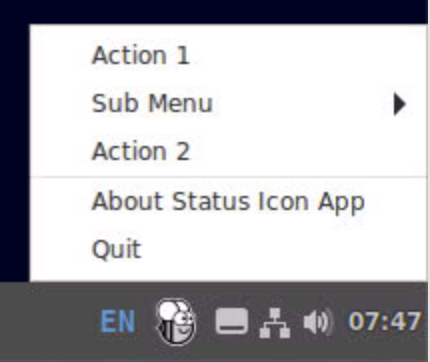

Status icons on GTK are implemented using the XApp library. This requires that the user has installed the system packages for libxapp, plus the GObject Introspection bindings for that library. The name of the system package required is distribution dependent:
Ubuntu: gir1.2-xapp-1.0
Fedora: xapps
The GNOME desktop environment does not provide built-in support for status icons. This is an explicit design decision on their part, and they advise against using status icons as part of your app design. However, there are GNOME shell extensions that can add support for status icons. Other GTK-based desktop environments (such as Cinnamon) do support status icons.

Reference¶

toga.statusicons.StatusIcon ¶

StatusIcon(icon=None)

An abstract base class for all status icons.

icon `property` `writable` ¶

icon

The Icon to display in the status bar.

When setting the icon, you can provide either an Icon instance, or a path that will be passed to the Icon constructor.

id `abstractmethod` `property` ¶

id

A unique identifier for the status icon.

text `abstractmethod` `property` ¶

text

A text label for the status icon.

toga.SimpleStatusIcon ¶

SimpleStatusIcon(id=None, icon=None, text=None, on_press=None)

Bases: StatusIcon

An button in a status bar or system tray.

When pressed, the on_press handler will be activated.

PARAMETER	DESCRIPTION
`id`	An identifier for the status icon. TYPE: `str \| None` DEFAULT: `None`
`icon`	The icon, or icon resource, that will be displayed in the status bar or system tray. TYPE: `IconContentT \| None` DEFAULT: `None`
`text`	A text label for the status icon. Defaults to the formal name of the app. TYPE: `str \| None` DEFAULT: `None`
`on_press`	The handler to invoke when the status icon is pressed. TYPE: `OnPressHandler \| None` DEFAULT: `None`

on_press `property` `writable` ¶

on_press

The handler to invoke when the status icon is pressed.

toga.MenuStatusIcon ¶

MenuStatusIcon(id=None, icon=None, text=None)

Bases: Group, StatusIcon

An item in a status bar or system tray that displays a menu when pressed.

A MenuStatusIcon can be used as a Group when defining toga.Command instances.

PARAMETER	DESCRIPTION
`id`	An identifier for the status icon. TYPE: `str \| None` DEFAULT: `None`
`icon`	The icon, or icon resource, that will be displayed in the status bar or system tray. TYPE: `IconContentT \| None` DEFAULT: `None`
`text`	A text label for the status icon. Defaults to the formal name of the app. TYPE: `str \| None` DEFAULT: `None`

toga.statusicons.StatusIconSet ¶

StatusIconSet()

Bases: Sequence[StatusIcon], Mapping[str, StatusIcon]

An ordered collection of status icons.

The items in the set can be retrieved by instance, or by ID. When iterated, the items are returned in the order they were added.

add ¶

add(*status_icons)

Add one or more icons to the set.

PARAMETER	DESCRIPTION
`status_icons`	The icon (or icons) to add to the set. TYPE: `StatusIcon` DEFAULT: `()`

clear ¶

clear()

Remove all the icons from the set.

RAISES	DESCRIPTION
`ValueError`	If the status icon commands include any commands that reference an icon that has been removed.

remove ¶

remove(status_icon)

Remove a single icon from the set.

PARAMETER	DESCRIPTION
`status_icon`	The status icon instance to remove. TYPE: `StatusIcon`

RAISES	DESCRIPTION
`ValueError`	If the status icon commands include any commands that reference the icon that has been removed.
